Mild Steel Double Flange Mount Ball Transfer 15.8mm Roller Diameter | BTR116MS

Material: Mild Steel
Ball Diameter: 5/8" (15.8mm)
Overall Height: 21mm
Hole Centres: 40mm
Mounting Hole Diameter: 4mm
Load Capacity: 10kg

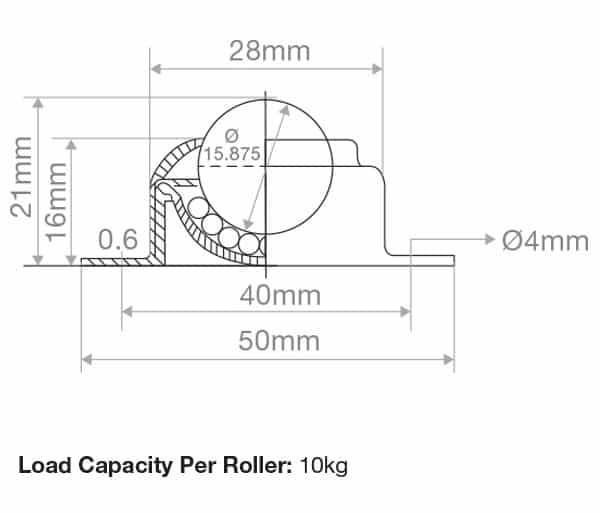

<a href="https://www.richmondau.com/wp-content/uploads/2020/09/BTR116_dimensions-e1599534512609.jpg"><img class="alignnone wp-image-64408 " src="https://www.richmondau.com/wp-content/uploads/2020/09/BTR116_dimensions-e1599534512609.jpg" alt="" width="470" height="402" /></a>
Also available in stainless steel, stainless steel part number <a href="https://admerch.com.au/product/304-stainless-steel-double-flange-mount-ball-transfer-15-8mm-roller-diameter-btr116ss/">BTR116SS</a>
This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.
<div class="combined_desc_block">
<a href="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg"><img class="alignnone size-full wp-image-45279" src="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg" alt="" width="300" height="200" /></a>
</div>

simple

Conveyor Material Handling

Ball Transfers

Buy-online

wheels-castors-freight

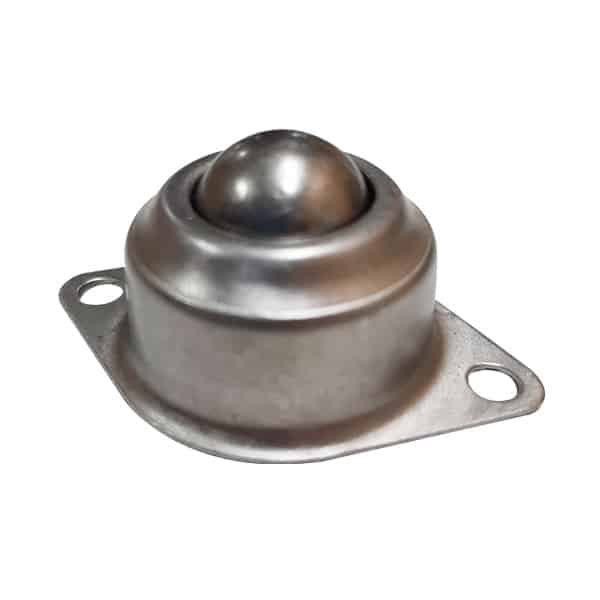

304 Stainless Steel Double Flange Mount Ball Transfer 15.8mm Roller Diameter | BTR116SS

Material: Grade 304 Stainless Steel
Ball Diameter: 5/8" (15.8mm)
Overall Height: 21mm
Hole Centres: 40mm
Mounting Hole Diameter: 4mm
Load Capacity: 10kg
<a href="https://www.richmondau.com/wp-content/uploads/2020/09/BTR116_dimensions-e1599534512609.jpg"><img class="alignnone wp-image-64408 " src="https://www.richmondau.com/wp-content/uploads/2020/09/BTR116_dimensions-e1599534512609.jpg" alt="" width="470" height="402" /></a>
Also available in mild steel,  mild steel part number <a href="https://admerch.com.au/product/mild-steel-double-flange-mount-ball-transfer-15-8mm-roller-diameter-btr116ms/">BTR116MS</a>
This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.
<div class="combined_desc_block">
<a href="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg"><img class="alignnone size-full wp-image-45279" src="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg" alt="" width="300" height="200" /></a>
</div>

304 Stainless Steel Double Flange Mount Ball Transfer 15.8mm Roller Diameter | BTR116SS
