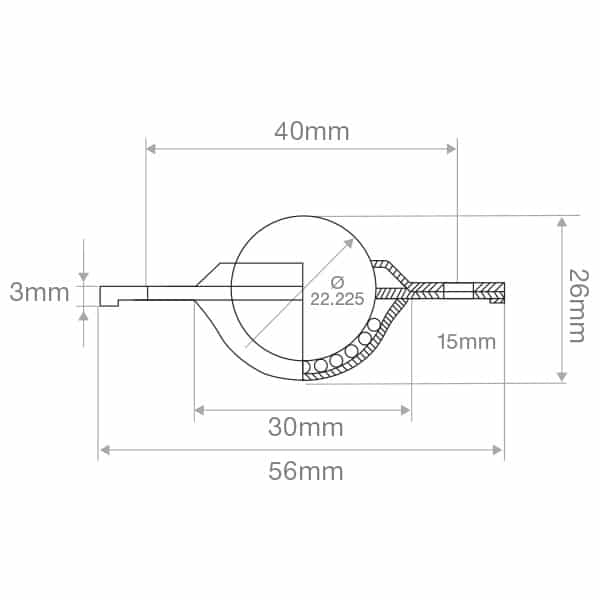

Mild Steel Recessed Flange Mount Ball Transfer 22.225mm Roller Diameter | BTR222MS

Material: Mild Steel
Ball Diameter: 7/8" (22.225mm)
Overall Height: 26mm
Recessed Height: 11mm
Hole Centres: 40mm
Mounting Hole Diameter: 4mm
Load Capacity: 25kg<a href="https://www.richmondau.com/wp-content/uploads/2020/09/BTR222_dimensions.jpg"><img class="alignnone wp-image-64417 " src="https://www.richmondau.com/wp-content/uploads/2020/09/BTR222_dimensions.jpg" alt="" width="431" height="431" /></a>
Also available in grade 304 stainless steel,  stainless steel part number <a href="https://admerch.com.au/product/304-stainless-steel-recessed-flange-mount-ball-transfer-22-225mm-roller-diameter-btr222ss/">BTR222SS</a>
<div class="combined_desc_block">
<a href="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg"><img class="alignnone size-full wp-image-45279" src="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg" alt="" width="300" height="200" /></a>
</div>

simple

Conveyor Material Handling

Ball Transfers

Buy-online

wheels-castors-freight

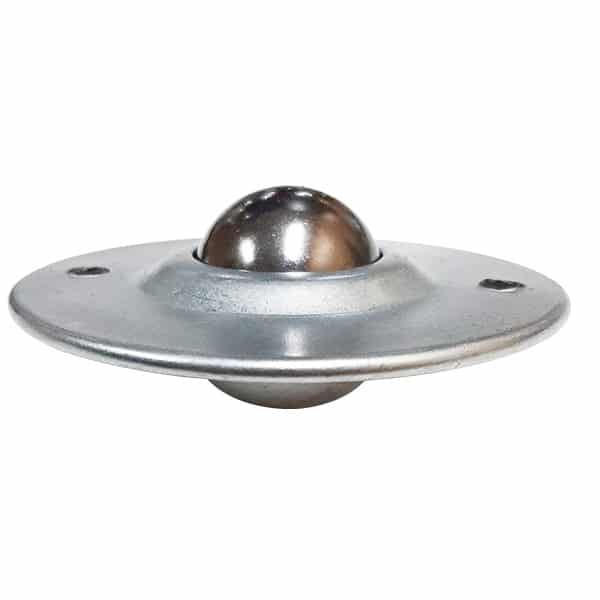

304 Stainless Steel Recessed Flange Mount Ball Transfer 22.225mm Roller Diameter | BTR222SS

Material: Grade 304 Stainless Steel
Ball Diameter: 7/8" (22.225mm)
Overall Height: 26mm
Recessed Height: 11mm
Hole Centres: 40mm
Mounting Hole Diameter: 4mm
Load Capacity: 25kg
<a href="https://www.richmondau.com/wp-content/uploads/2020/09/BTR222_dimensions.jpg"><img class="alignnone wp-image-64417 " src="https://www.richmondau.com/wp-content/uploads/2020/09/BTR222_dimensions.jpg" alt="" width="431" height="431" /></a>
Also available in mild steel,  mild steel part number <a href="https://admerch.com.au/product/mild-steel-recessed-flange-mount-ball-transfer-22-225mm-roller-diameter-btr222ms/">BTR222MS</a>
<div class="combined_desc_block">
<a href="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg"><img class="alignnone size-full wp-image-45279" src="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg" alt="" width="300" height="200" /></a>
</div>

304 Stainless Steel Recessed Flange Mount Ball Transfer 22.225mm Roller Diameter | BTR222SS
