Spring Gate Castor with 75mm Solid Black Nylon Wheel (S3024)

Richmond's Spring Loaded Gate Castors are designed to make opening and closing of residential gates easier. The spring loaded design provides shock absorption features specifically for use on uneven surfaces. The gate mount is integrated into the frame of the castor for easy fixing to any gate system. Has been designed for use on platform ladders that require maneuverability combined with locking under load.
The S3024 from Richmond Wheel and Castor Co, is a swivel frame castor and features a nylon wheel. This swivel castor is one of our spring loaded gate range and can hold loads up to 20kg. The S3024 uses plain bearings for wheel rotation. The swivel frame permits the load to be steered. The overall nylon wheel diameter is 75mm and the wheel width is 30mm, which can be ordered separately (<a href="https://admerch.com.au/product/ny3321-31blk-75mm-black-nylon-plain-bore-wheel/">NY3321</a>).
Features:
<ul>
<li>Castor Frame Type: Swivel</li>
<li>Wheel Diameter: 75mm</li>
<li>Castor Height: 107mm</li>
<li>Bolt Size: M16</li>
<li>Swivel Radius: 71mm</li>
<li>Wheel Bearing Type: Plain Bore</li>
<li>Maximum Load Capacity: 20kg</li>
<li>Wheel Type: Nylon</li>
<li>Wheel Width: 30mm</li>
<li>Wheel Code: <a href="http://www.richmondau.com/?post_type=product&amp;s=NY3321">NY3321</a></li>
<li><a href="https://admerch.com.au/wp-content/uploads/2018/01/gate-castors.pdf" target="_blank" rel="noopener">Product Spec Sheet</a></li>
</ul>
<img class="wp-image-42868 alignnone" src="https://admerch.com.au/wp-content/uploads/2015/12/Richmond-300x200-300x200.jpg" alt="" width="236" height="157" />

simple

Castors

Nylon Castors

Spring Loaded Gate Castors

Buy-online

wheels-castors-freight


Spring Gate Castor with 75mm Blue Rebound Rubber Wheel (S3022)

Richmond's Spring Loaded Gate Castors are designed to make opening and closing of residential gates easier. The spring loaded design provides shock absorption features specifically for use on uneven surfaces. The gate mount is integrated into the frame of the castor for easy fixing to any gate system. Has been designed for use on platform ladders that require maneuverability combined with locking under load.
The S3022 by Richmond Wheel and Castor Co, is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is one of our spring loaded gate range and can hold loads up to 20kg. The S3022 wheel is fitted with ball bearings. The swivel frame design of this castor allows the load to be steered. The outside diameter of the rebound rubber wheel is 75mm and the wheel width is 30mm, which can be ordered separately (<a href="https://admerch.com.au/product/rr3348-31-75mm-resilient-rubber-blue-tyre-bb-wheel/">RR3348</a>).
Features:
<ul>
<li>Wheel Diameter: 75mm</li>
<li>Castor Frame Type: Swivel</li>
<li>Wheel Width: 30mm</li>
<li>Wheel Type: Rebound Rubber</li>
<li>Wheel Code: <a href="http://www.richmondau.com/?post_type=product&amp;s=RR3348">RR3348</a></li>
<li>Wheel Bearing Type: Ball Bearing</li>
<li>Castor Height: 107mm</li>
<li>Swivel Radius: 71mm</li>
<li>Bolt Hole Size: 16mm</li>
<li class="load_capacity_spec">Maximum Load Capacity: 20kg</li>
</ul>
<div class="combined_desc_block">
<a href="https://admerch.com.au/wp-content/uploads/2015/12/Richmond-300x200.jpg"><img class="alignnone wp-image-42868" src="https://admerch.com.au/wp-content/uploads/2015/12/Richmond-300x200-300x200.jpg" alt="" width="234" height="156" /></a>
</div>

Rebound Trolley Wheels

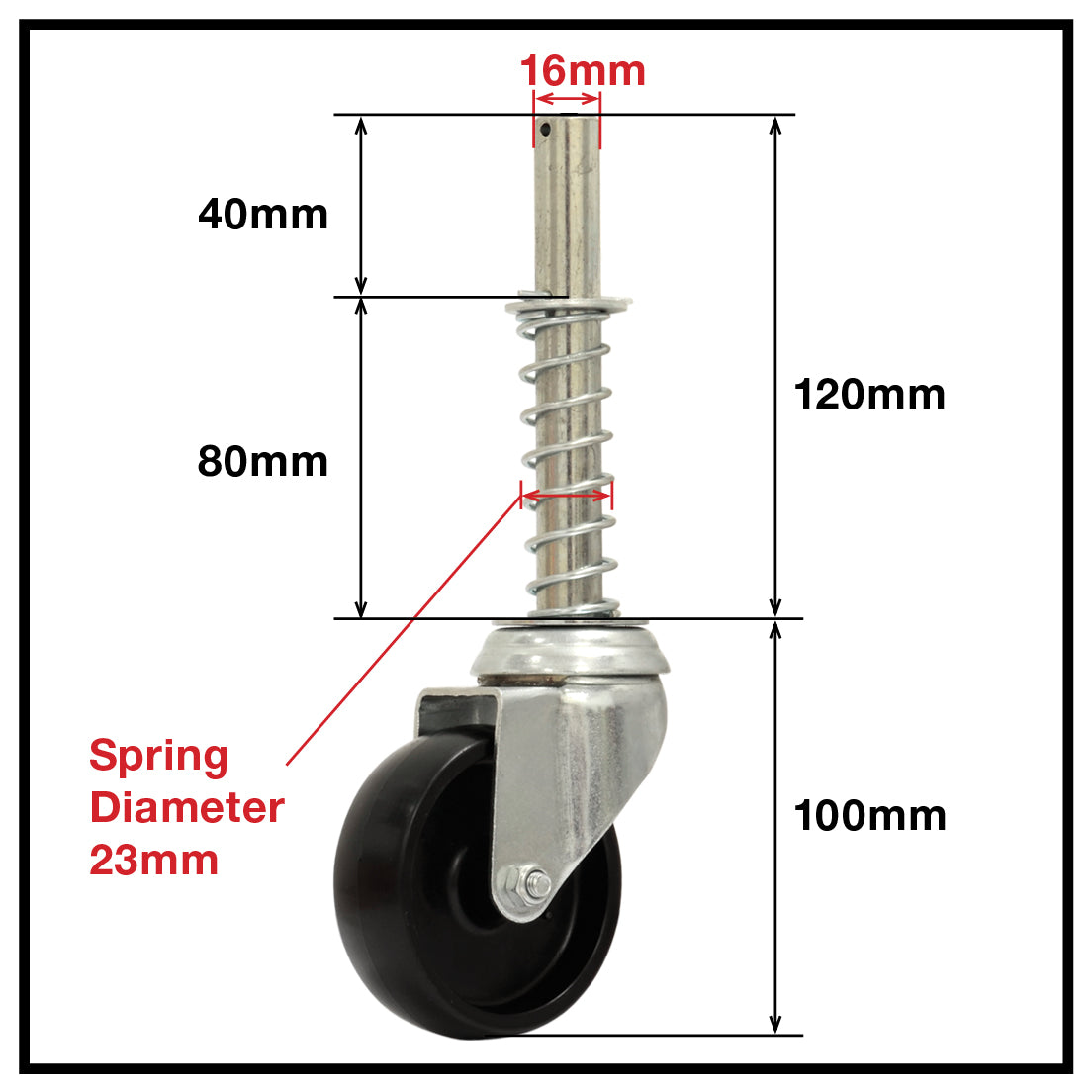

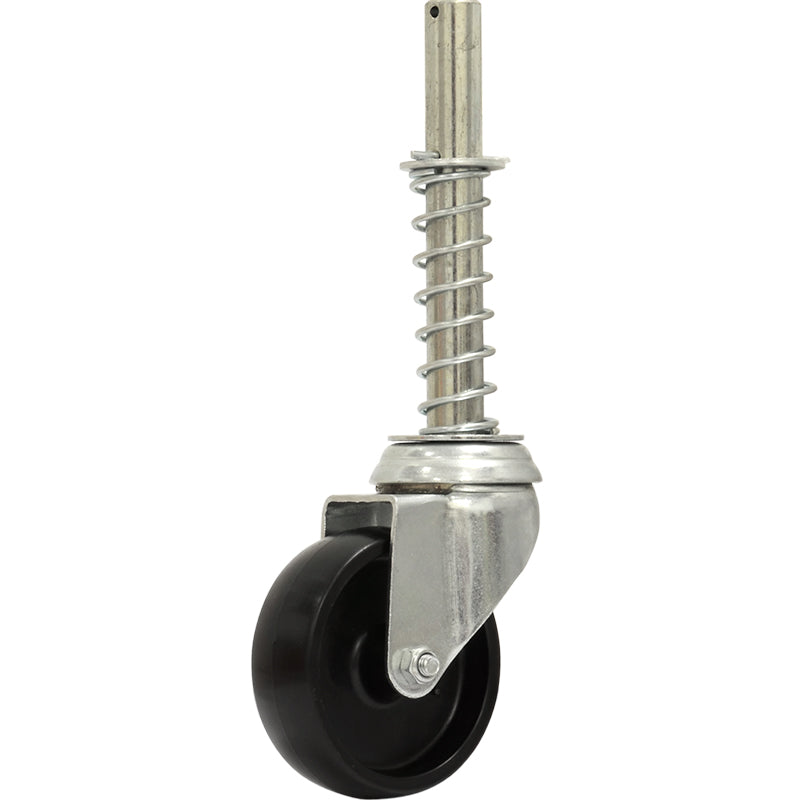

75mm Nylon Wheel 25kg Capacity Spring Loaded Gate Castor (S3712SPR)

Castor Frame Type: Swivel
Wheel Diameter: 75mm
Castor Height: 100mm
Bolt Size: M16
Swivel Radius: 65mm
Wheel Bearing Type: Plain Bore
Maximum Load Capacity: 25kg
Wheel Type: Nylon
Wheel Width: 25mm
Wheel Code: <a href="/?post_type=product&amp;s=NY3324">NY3324</a>
<img class="alignnone wp-image-50042" src="https://www.richmondau.com/wp-content/uploads/2016/03/S3712SPR-dimensions.jpg" alt="" width="512" height="512" />
<div class="combined_desc_block">The S3712SPR from Richmond Wheel and Castor Co. is a swivel frame castor and features a nylon wheel. This swivel castor is part of our spring loaded gate range and can safely take loads up to 20kg. The S3712SPR wheel is fitted with plain bearings. This castors swivel frame allows full swivel rotation to enable steering. The nylon wheel diameter is 75mm, the wheel width is 25mm and can be ordered separately (<a href="/?post_type=product&amp;s=NY3324">NY3324</a>).</div>

75mm Nylon Wheel 25kg Capacity Spring Loaded Gate Castor (S3712SPR)
