This castor from Richmond Wheel and Castor Co. is designed with a rigid frame and is fitted with a aluminium 100mm wheel. The part number for this castor is R4397. The top load capacity of the R4397 is 180kg. The rigid castor is assembled with oilless bushs on the castors axle. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The wheel diameter is 100mm and the wheel overall width is 36mm.


Richmond Castor Rigid with 100mm Aluminium Wheel (R4397)

R4397 Rigid Richmond Castor with 100mm Aluminium Wheel.
Castor Wheel Diameter: 100mm
Castor Frame Type: Rigid
Castor Wheel Construction: Aluminium
Bearing Type: Oilless Bush
Castor Height: 142mm
Maximum Castor Capacity: 180kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

simple

Castors

Heavy Industrial

100mm Heavy Duty Castors

Buy-online

wheels-castors-freight


This Richmond Wheel and Castor Co. castor is manufactured with a swivel frame and features a aluminium 100mm wheel. The order code for this castor S4396. The S4396 has a maximum capacity of 180kg. The swivel castor wheel is fitted with oilless bushs. This castors swivel frame allows the load to be steered. The overall wheel diameter is 100mm and the wheel overall width is 36mm.

Richmond Castor Swivel with 100mm Aluminium Wheel (S4396)

S4396 Swivel Richmond Castor with 100mm Aluminium Wheel.
Castor Wheel Diameter: 100mm
Castor Frame Type: Swivel
Castor Wheel Construction: Aluminium
Bearing Type: Oilless Bush
Castor Height: 142mm
Maximum Castor Capacity: 180kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />


This Richmond Wheel and Castor Co. castor has a swivel frame and is fitted with a aluminium 100mm wheel. The stock code for this castor S4114. 180kg is the maximum load capacity for the S4114. The swivel castor wheel is fitted with plain bearings and is baseplate mount. This castors swivel frame permits the load to be steered. The diameter of the wheel is 100mm, the wheel overall width is 35mm and can be purchased separately (<a href="/?s=AL473&amp;post_type=product">AL473</a>).


Richmond Swivel 100mm Teflon Brush Aluminium Hi-Low Temp Wheel Stainless Steel Excel Castor (S4114)

S4114 Swivel Richmond Castor with 100mm Aluminium Wheel.
Castor Wheel Diameter: 100mm
Castor Frame Type: Swivel
Castor Wheel Construction: Aluminium
Bearing Type: Plain Bearing
Castor Height: 133mm
Maximum Castor Capacity: 180kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

Excel Plate Castors

Stainless Steel Castors


This rigid frame castor (order code R4115) uses a aluminium 100mm wheel. The maximum load capacity of this castor is 180kg. The rigid castor uses plain bearings for wheel rotation. The rigid frame design of this castor allows for steering only when used with swivel castors. The overall wheel diameter is 100mm and the wheel overall width is 35mm.

Rigid Castor with Aluminium 100mm Wheel (R4115)

R4115 Rigid Richmond Castor with 100mm Aluminium Wheel.
Castor Wheel Diameter: 100mm
Castor Frame Type: Rigid
Castor Wheel Construction: Aluminium
Bearing Type: Plain Bearing
Castor Height: 133mm
Maximum Castor Capacity: 180kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

Stainless Excel


This Aluminium wheel from Richmond is 100mm in diameter and has an axle diameter of 3/8" (9.52mm). The code to order this wheel is AL473-37.

100mm Aluminium 280 Celsius Hitemp Metal Sleeved Richmond Wheel | AL473-37

Wheel Type: Aluminium Wheel
Wheel Diameter: 100mm
Axle Diameter: 3/8" (9.52mm)
Tyre Width: 36mm
Boss Width: 47mm
Category: Extreme Temperature Wheels
Order Code: AL473-37

Wheels

High-Low Temperature Wheels

Wheels-High-Low-Temperature-020AL473-37

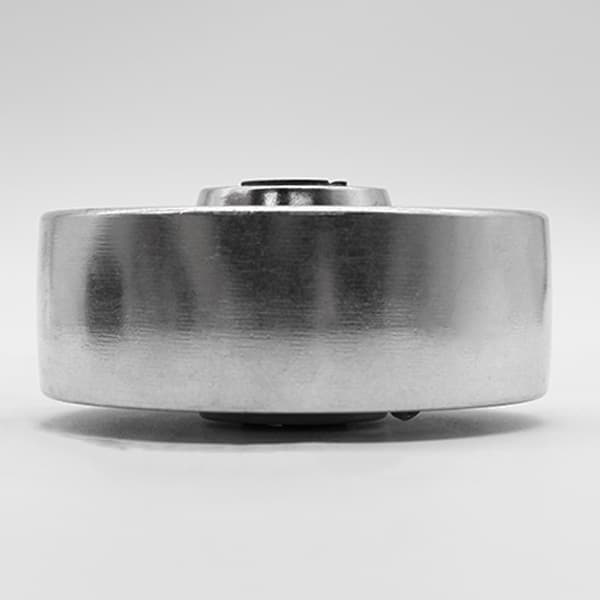

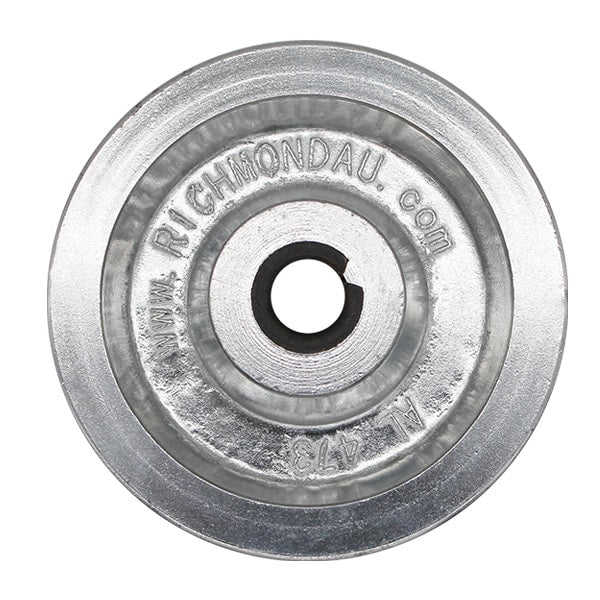

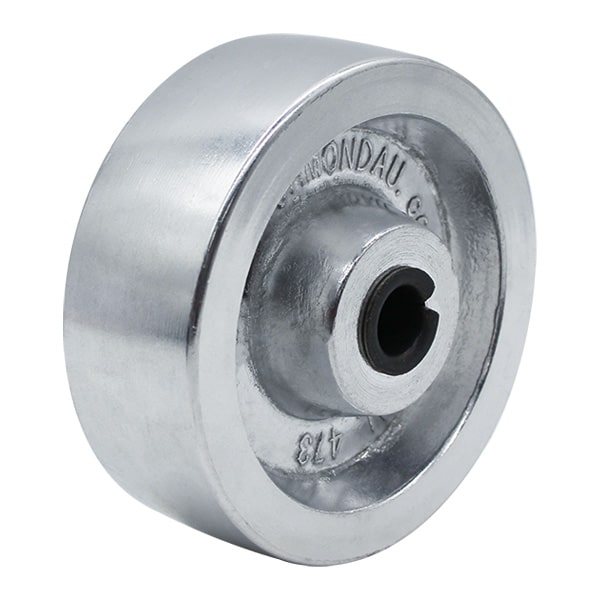

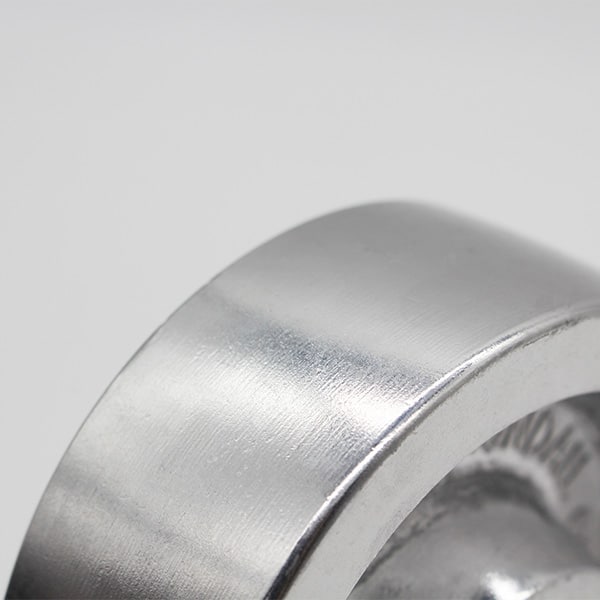

High/Low Temp 100mm Wheel | 1/2" Axle Diameter (AL473-50)

<ul>
<li>100mm diameter wheel manufactured from hardened aluminium</li>
<li>Manufactured with a high-temp DU bush &amp; crowned rim profile</li>
<li>Suitable for -30°c to 280°c heat temperature ranges. (DU bush is reason for maximum temperature of 280°c)</li>
<li>Identical wheel to al472 but c/w wider boss width to suit Richmond 300 Series &amp; Heavy Industrial castor frames</li>
<li>Optimal wheel for medium-high temperature ovens baking at a continual (or cycle) heat up to 280°c</li>
<li>Maximum 180kg load capacity per wheel</li>
<li>Aluminium material withholds heat so is susceptible to damage/marking non-slip or epoxy flooring</li>
</ul>
DIAMETER(mm): 100mm
TYRE WIDTH(mm): 36
BOSS WIDTH(mm): 47
Temperature range: -30° to 280°C
AXLE DIAMETER: 1/2 inch (12.7mm)
BEARING TYPE: DU Oilless Bush
LOAD CAPACITY(kg): 180/150
WHEEL CODE: AL473-50

High/Low Temp 100mm Wheel | 1/2" Axle Diameter (AL473-50)
