304 Stainless Steel Square Flange Mount Ball Transfer 38.1mm Roller Diameter | BTR638SS

Material: Grade 304 Stainless Steel
Ball Diameter: 1.5" (38.1mm)
Overall Height: 45mm
Hole Centres: 62mm
Mounting Hole Diameter: 7mm
Load Capacity: 90kg

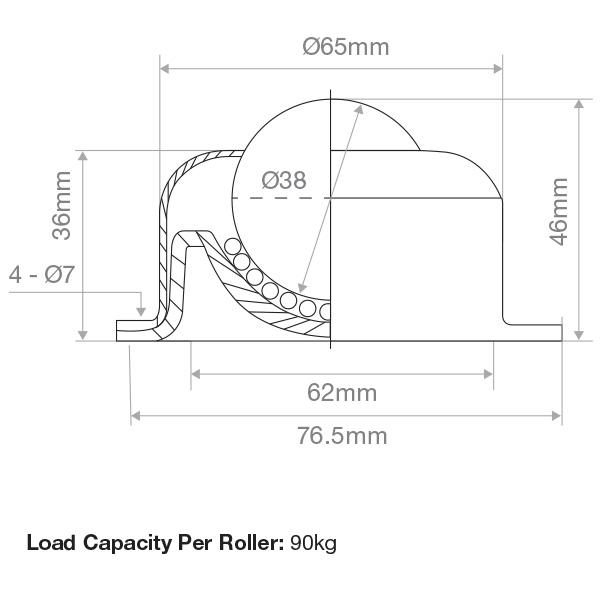

<a href="https://www.richmondau.com/wp-content/uploads/2020/09/BTR638_dimensions.jpg"><img class="alignnone wp-image-64586" src="https://www.richmondau.com/wp-content/uploads/2020/09/BTR638_dimensions.jpg" alt="" width="515" height="515" /></a>
Also available in mild steel, mild steel part number <a href="https://admerch.com.au/product/304-stainless-steel-square-flange-mount-ball-transfer-38-1mm-roller-diameter-btr638ss/">BTR638MS</a>
This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.
<div class="combined_desc_block">
<a href="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg"><img class="alignnone size-full wp-image-45279" src="https://admerch.com.au/wp-content/uploads/2018/03/Richmond-300.jpg" alt="" width="300" height="200" /></a>
</div>

simple

Conveyor Material Handling

Ball Transfers

Buy-online

wheels-castors-freight

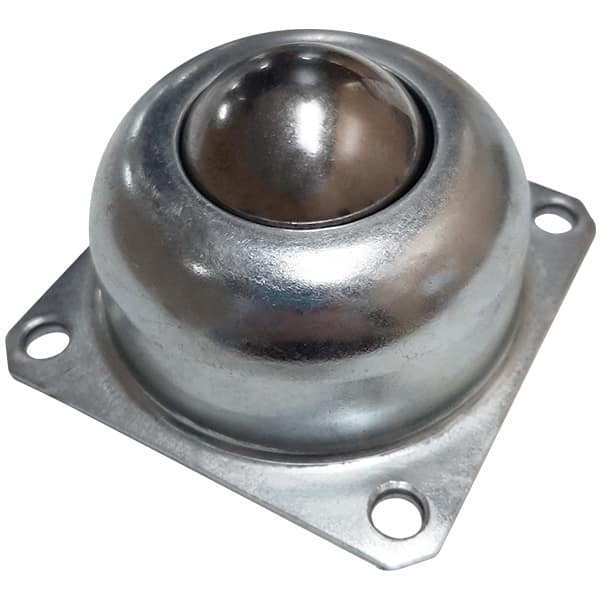

Mild Steel Square Flange Mount Ball Transfer 38.1mm Roller Diameter | BTR638MS

Material: Mild Steel
Ball Diameter: 1.5" (38.1mm)
Overall Height: 45mm
Hole Centres: 62mm
Mounting Hole Diameter: 7mm
Load Capacity: 90kg

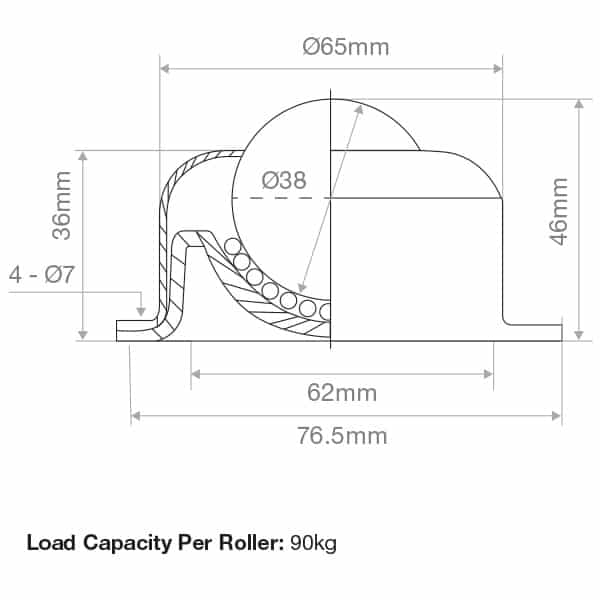

<a href="https://www.richmondau.com/wp-content/uploads/2020/09/BTR638_dimensions.jpg"><img class="alignnone wp-image-64586" src="https://www.richmondau.com/wp-content/uploads/2020/09/BTR638_dimensions.jpg" alt="" width="472" height="472" /></a>
Also available in stainless steel, stainless steel part number <a href="https://admerch.com.au/product/304-stainless-steel-square-flange-mount-ball-transfer-38-1mm-roller-diameter-btr638ss/">BTR638SS</a>
This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.
