This swivel frame castor (stock code S5506B) uses a nylon 125mm wheel. The top load capacity of the S5506B is 125kg. The swivel castor uses plain bearings for wheel rotation. This caster is fitted with a brake, however it can be purchased without a brake (<a href="/?s=S5506&amp;post_type=product">see number S5506</a>). The swivel frame allows the load to be steered. The overall wheel diameter is 125mm, the wheel overall width is 30mm and can be purchased separately (<a href="/?s=NY5517&amp;post_type=product">NY5517</a>).


Richmond Castor Swivel with Nylon 125mm Wheel and Brake (S5506B)

S5506B Swivel Richmond Castor with 125mm Nylon Wheel fitted with brake.
Castor Wheel Diameter: 125mm
Castor Frame Type: Swivel
Castor Wheel Construction: Nylon
Bearing Type: Plain Bearing
Castor Height: 160mm
Maximum Castor Capacity: 125kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

simple

Castors

Light Industrial

Nylon Castors

Swivel Castors

Buy-online

wheels-castors-freight


This castor from Richmond Wheel and Castor Co. consists of a swivel frame and is fitted with a nylon 125mm wheel. This castors stock code is S5506. The S5506 has a maximum capacity of 125kg. The swivel castor uses plain bearings for wheel rotation. To purchase this castor fitted with a brake, see <a href="/?s=S5506B&amp;post_type=product">S5506B</a>. This castors swivel frame allows full swivel rotation to enable steering. The outside diameter of the wheel is 125mm, the wheel overall width is 30mm and can be purchased separately (<a href="/?s=NY5517&amp;post_type=product">NY5517</a>).

Richmond Castor Swivel with Nylon 125mm Wheel (S5506)

S5506 Swivel Richmond Castor with 125mm Nylon Wheel.
Castor Wheel Diameter: 125mm
Castor Frame Type: Swivel
Castor Wheel Construction: Nylon
Bearing Type: Plain Bearing
Castor Height: 160mm
Maximum Castor Capacity: 125kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

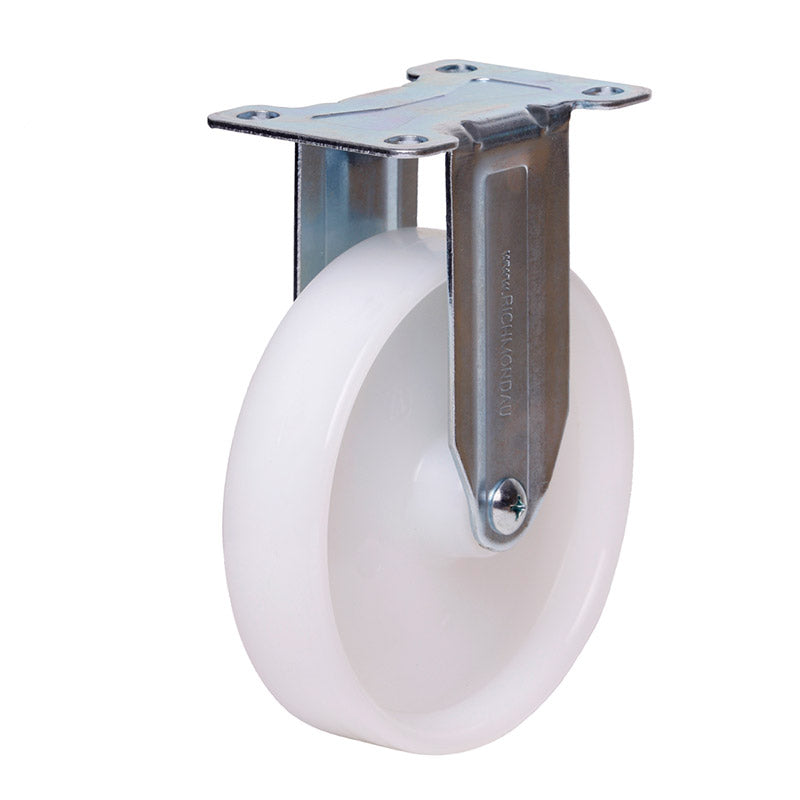

This castor from Richmond Wheel and Castor Co. is manufactured with a rigid frame and is fitted with a nylon 125mm wheel. The part number for this castor is R5507. 125kg is the maximum load capacity for the R5507. The rigid castor uses plain bearings for wheel rotation. The rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall wheel diameter is 125mm, the wheel overall width is 30mm and you can order separately (See <a href="/?s=NY5517&amp;post_type=product">NY5517</a>).

Richmond Castor Rigid with Nylon 125mm Wheel (R5507)

R5507 Rigid Richmond Castor with 125mm Nylon Wheel.
Castor Wheel Diameter: 125mm
Castor Frame Type: Rigid
Castor Wheel Construction: Nylon
Bearing Type: Plain Bearing
Castor Height: 160mm
Maximum Castor Capacity: 125kg
