<h2>Automatic Swing Gate Kit - Turn Existing Swing Gates Into Automatic Gates</h2>
This heavy duty, automatic swing gate kit has everything you need for the DIY installation of your very own electronic, automatic gate system. This system can support gates that are 4m long or weigh up to 400kg per gate arm – install it at your home OR your business!
A swing gate system consists of two gates opening inwards at once - increasing both security and size of access point to your property. Swing gate systems are commonly used when a traditional sliding gate system is unsuitable.
Automatic gates provide added security to your property, and also eliminate the need to leave your car to open and close the gate. Automatic gates will even add value to your property.
To complement this automatic swing gate kit, AdMerch offer a full range of gate accessories including guide rollers and brackets, track wheels, spring loaded gate castors with integrated mounting, and many more components.
A number of <a href="https://admerch.com.au/product-category/gate-equipment/gate-motor-accessories/">Motor Accessories</a> are available, including a wired access control panel that allows you to set a PIN code for gate access. Spare remotes and photo beams (gate sensors) are also available.
This swing gate kit is also solar compatible! Get started with our range of <a href="https://admerch.com.au/product-category/gate-equipment/gate-solar-accessories/">solar accessories</a> today.
AdMerch only stock the best – this swing gate kit is designed to last the test of time in a heavy duty environment, and is regarded as the best in its field.
We deliver nationwide – so no matter where you’re from – Melbourne, Sydney, Adelaide, Perth, Brisbane or anywhere else in Australia – we have a customised solution for your business or home.
Don’t compromise – only choose the best and most reliable to get maximum value for money, and peace of mind.
&nbsp;
Only the strongest, toughest, most effective and longest lasting products from Australia and around the world are found here – at the lowest prices. They are suited to any type or sized business – even your own home.
<div></div>
&nbsp;


DC/Solar Automatic Swing Gate Kit GTR062

This heavy duty, automatic swing gate kit has everything you need for the DIY installation your very own automatic gate system.
Automatic gates provide added security to your property, and also eliminate the need to leave your car to open and close the gate.
<a href="https://admerch.com.au/wp-content/uploads/2019/09/GTR062-GTR078-gate-manual.pdf">Click Here to download the instruction manual for the GTR062 swing gate kit</a>
Features:
<ul>
<li>Suitable for swing gates with arms up to 400kg and 4m long per gate</li>
<li>High quality steel swing arm</li>
<li>Manual release back-up</li>
<li>50m range remote controls</li>
<li>Adjustable automatic closing</li>
<li>Water/dust resistant to IP44</li>
<li>Adjustable time and force settings</li>
<li>Opening time - 8 - 12 seconds</li>
<li>Simply add batteries</li>
</ul>
DC/Solar Swing Gate Kit Contents:
<ul>
<li>2 x Gate Swing Arms</li>
<li>1 x Solar Control Box</li>
<li>1 x Solar Battery Pack Kit (which includes 2 x 12V 12Ah batteries &amp; solar regulator)</li>
<li>1 x Solar Panel</li>
<li>2 x Remote Controls</li>
<li>1 x Battery Box</li>
<li>Instruction manual</li>
<li>Brackets, fittings &amp; hardware</li>
</ul>
&nbsp;
AdMerch deliver nationwide
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

simple

Gate Equipment

Swing gate openers and accessories

Swing Gate Automation Kits

Gate Motors

Swing Hardware

Buy-online

Gate Motors &amp; Accessories


DC/Solar DIY Single Swing Gate Automation Kit (GTR078)

This heavy duty, automatic swing gate kit has everything you need to convert your existing swing gate into an automated DC/solar gate system. Automatic gates provide added security to your property, and also eliminate the need to leave your car in order to open and close the gate.
<a href="https://www.richmondau.com/wp-content/uploads/2019/11/GTR062-GTR078-solar-gate-kit-manual-Rev2a.pdf">Click Here to download the manual for GTR078</a>
Kit Contents
<ul>
<li><a href="https://www.richmondau.com/product/replacement-swing-arm-gtr172/">1 x Swing Gate Motor GTR172</a></li>
<li><a href="https://www.richmondau.com/product/solar-control-box-gtr171/">1 x Solar Control Box GTR171</a></li>
<li><a href="https://www.richmondau.com/product/30w-solar-power-kit-gtr097/">1 x 30W Solar Power Kit GTR097 (includes 1x 30W Solar Panel, and 1x 24V Solar Regulator)</a></li>
<li><a href="https://www.richmondau.com/product/battery-box-gate-automation-kits-gtr096/">1 x Battery Box GTR096</a></li>
<li><a href="https://www.richmondau.com/product/hardware-kit-gtr173/">1 x Swing Gate Hardware Mounting Kit GTR173</a></li>
<li>2 x Remote Controls (Remote Part Number <a href="https://www.richmondau.com/product/gtr054-gate-remote/">GTR054</a>)</li>
</ul>
This kit does not include batteries.
2 x 12v/12AH batteries are required for operation (sold separately). Part Number <a href="https://www.richmondau.com/product/12v-12ah-battery-dcsolar-gate-operation-gtr160/">GTR160</a>
A maximum of 10 remotes can be paired to this gate opener. To pair additional remotes an <a href="https://www.richmondau.com/product/remote-external-receiver-gate-automation-kits-gtr115/">External Receiver (GTR115) is required.</a>
<img class="alignnone size-full wp-image-47322" src="https://www.richmondau.com/wp-content/uploads/2018/09/solar-ready-logo.png" alt="" width="168" height="213" />
<a class="product-category product" href="https://www.richmondau.com/gate-motor-support/"><img src="https://www.richmondau.com/wp-content/uploads/2019/02/gate-troubleshooting-banner.jpg" alt="" width="522" height="141" /></a>

visible



Single Swing Gate Automation Kit (GTR099)

Convert your existing swing gate into a remote controlled, automatic gate. Increase security and ease of access to your property. Automatic gates provide added security to your property, and also eliminate the need to leave your car in order to open and close the gate.
Convert your existing swing gate into an automated gate system with this heavy-duty, automatic swing gate kit.
Includes 2 x 12V 7Ah Batteries
AC wiring must be installed by a qualified electrician
Kit Contents
<ul>
<li>1 x Automatic Gate Motor</li>
<li>1 x AC Adapter</li>
<li>1 x Control Box</li>
<li>2 x Remote Controls (<a href="https://www.richmondau.com/product/gtr054-gate-remote/">Remote Part Number: GTR054</a>)</li>
<li>Brackets, Fittings &amp; Hardware</li>
<li>2 x 12V 7Ah batteries</li>
<li>Instruction Manual</li>
</ul>
Features
<ul>
<li>Manual release function</li>
<li>Includes 2 x 12V 7Ah Batteries</li>
<li>Water and dust resistant to IP44</li>
<li>Auto close feature</li>
<li>Adjustable safety stop function</li>
</ul>
<a href="https://www.richmondau.com/wp-content/uploads/2019/11/GTR099-manual-REV18a.pdf">Click to download instruction manual for GTR099</a>
<iframe src="https://www.youtube.com/embed/dNgpzBj10Sw" width="560" height="315" frameborder="0" allowfullscreen="allowfullscreen"></iframe>
<a class="product-category product" href="https://www.richmondau.com/gate-motor-support/"><img src="https://www.richmondau.com/wp-content/uploads/2019/02/gate-troubleshooting-banner.jpg" alt="" width="522" height="141" /></a>
&nbsp;
&nbsp;


<h2>Automatic Swing Gate Kit - Turn Existing Swing Gates Into Automatic Gates</h2>
This heavy duty, automatic swing gate kit has everything you need for the DIY installation of your very own electronic, automatic gate system. This system can support gates that weigh up to 600kg – install it at your home OR your business!
A swing gate system consists of two gates opening inwards at once - increasing both security and size of access point to your property. Swing gate systems are commonly used when a traditional sliding gate system is unsuitable.
Automatic gates provide added security to your property, and also eliminate the need to leave your car to open and close the gate. Automatic gates will even add value to your property.
To complement this automatic swing gate kit, AdMerch offer a full range of gate accessories including guide rollers and brackets, track wheels, spring loaded gate castors with integrated mounting, and many more components.
A number of <a href="https://admerch.com.au/product-category/gate-equipment/gate-motor-accessories/">Motor Accessories</a> are available, including a wired access control panel that allows you to set a PIN code for gate access. Spare remotes and photo beams (gate sensors) are also available.
This swing gate kit is also solar compatible! Get started with our range of <a href="https://admerch.com.au/product-category/gate-equipment/gate-solar-accessories/">solar accessories</a> today.
AdMerch only stock the best – this swing gate kit is designed to last the test of time in a heavy duty environment, and is regarded as the best in its field.
We deliver nationwide – so no matter where you’re from – Melbourne, Sydney, Adelaide, Perth, Brisbane or anywhere else in Australia – we have a customised solution for your business or home.
Don’t compromise – only choose the best and most reliable to get maximum value for money, and peace of mind.
&nbsp;
Only the strongest, toughest, most effective and longest lasting products from Australia and around the world are found here – at the lowest prices. They are suited to any type or sized business – even your own home.
<div></div>
&nbsp;

GTR100-control-with-plug

Automatic Swing Gate Opener 600kg Capacity GTR058

This heavy duty, automatic swing gate kit has everything you need for the DIY installation your very own automatic gate system.
Automatic gates provide added security to your property, and also eliminate the need to leave your car to open and close the gate.
Features:
<ul>
<li>Suitable for swing gates with arms up to 300kg and 3m long</li>
<li>High quality stainless steel swing arm</li>
<li>Manual release back-up</li>
<li>50m range remote controls</li>
<li>Adjustable automatic closing</li>
<li>Water/dust resistant to IP44</li>
<li>Adjustable time and force settings</li>
<li>Opening time - 8 - 12 seconds</li>
<li>Solar ready – simply add solar panel, charge controller, battery and battery box</li>
</ul>
AC Swing Gate Kit Contents:
<ul>
<li>2 x Gate Swing Arms</li>
<li>1 x Control Box</li>
<li>2 x Remote Controls</li>
<li>Instruction manual</li>
<li>Brackets, fittings &amp; hardware</li>
<li>Everything you need to turn your existing gates into automatic gates</li>
</ul>
Max Weight Capacity: Suitable for gates up to 600kg (300kg per gate)
Supply Voltage: 240AC
AdMerch deliver nationwide
<a href="https://admerch.com.au/wp-content/uploads/2020/04/GTR058-instruction-manual-REV22.pdf">Click here to download the GTR058 instruction manual</a>
**Hardwiring 240vAC requires installation by a qualified electrician
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

GTR058-new-green-box-web

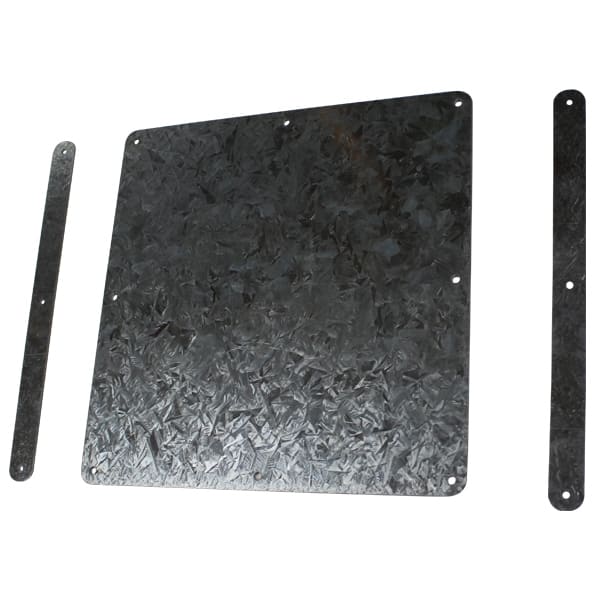

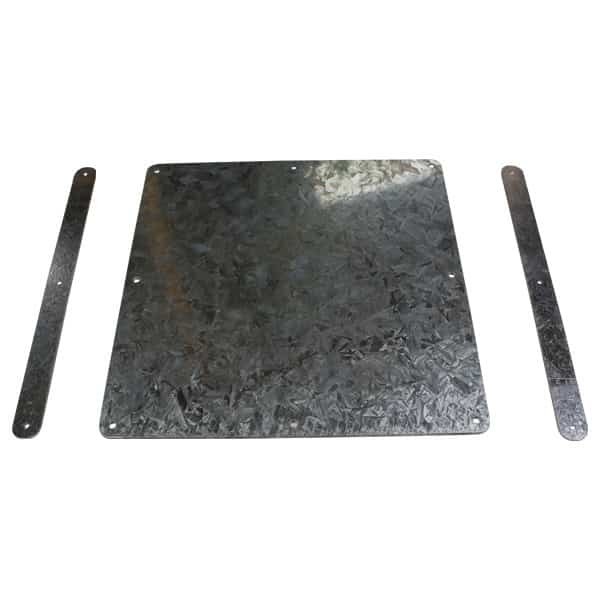

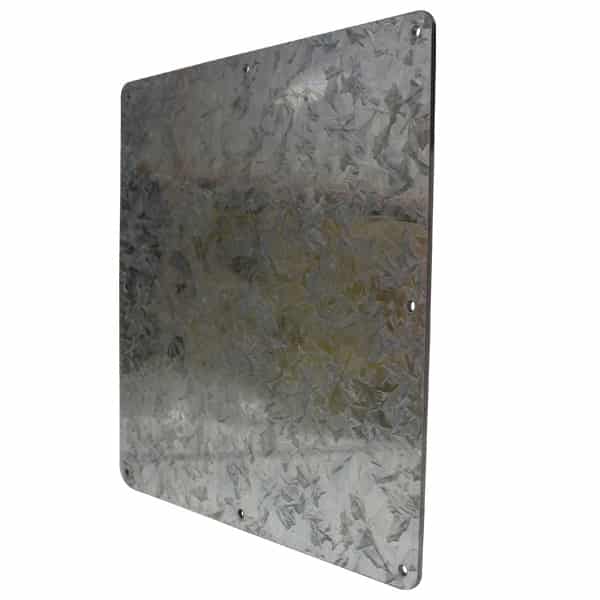

Swing Gate Mounting Plate for Steel Farm Gates (GTR170)

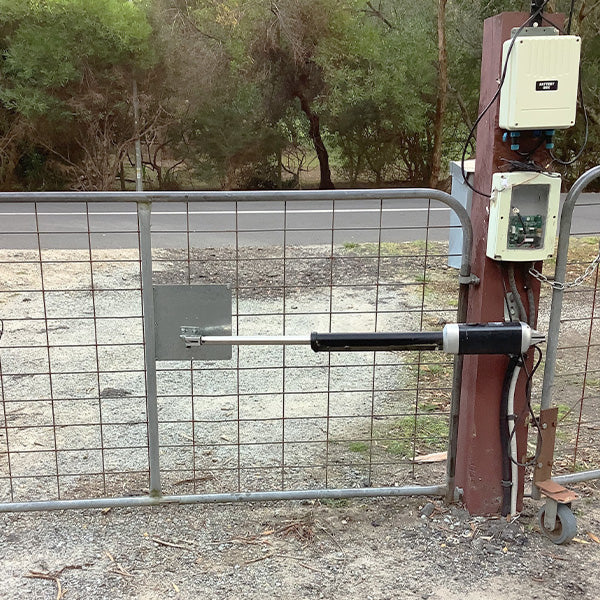

The GTR170 swing arm mounting plate allows Richmond's range of swing gate motors to be mounted onto steel farm gates. The motor is attached to the galvanised steel plate on one side of the gate which is secured to the gate with the back retaining plates.
Material: Galvanised Steel

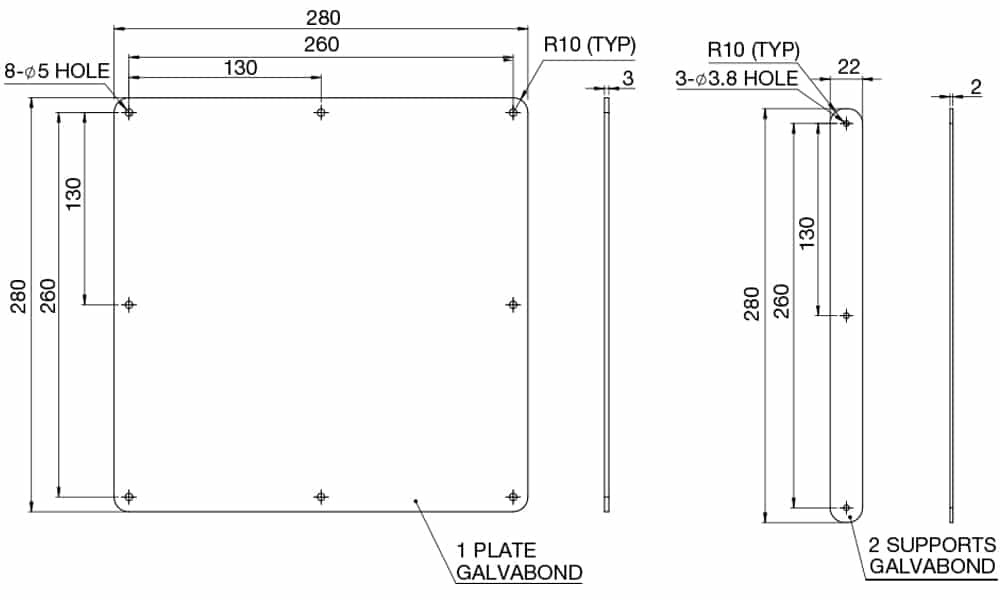

Plate Dimensions: 280 x 280 x 3mm

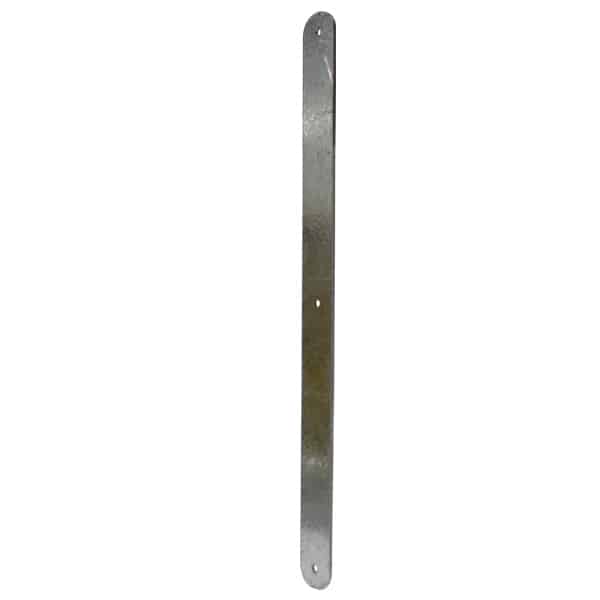

Back Retaining Plate Dimensions:  280 x 22mm (x2)
<a href="https://www.richmondau.com/wp-content/uploads/2021/06/GTR170-dimensions.jpg"><img class="alignnone wp-image-77181" src="https://www.richmondau.com/wp-content/uploads/2021/06/GTR170-dimensions.jpg" alt="" width="943" height="566" /></a>
<a href="https://www.richmondau.com/wp-content/uploads/2021/06/GTR170-swing-gate-mounting-plate-residential-farm-wire-gate.jpg"><img class="alignnone wp-image-77180" src="https://www.richmondau.com/wp-content/uploads/2021/06/GTR170-swing-gate-mounting-plate-residential-farm-wire-gate.jpg" alt="" width="669" height="669" /></a>
