This castor manufactured by Richmond Wheel and Castor Co. consists of a swivel frame and features a nylon 100mm wheel. This castors part number is S4716. The S4716 has a maximum capacity of 70kg. The swivel castor wheel is fitted with plain bearings. To purchase this castor fitted with a brake, see <a href="/?s=S4716B&amp;post_type=product">S4716B</a>. This castors swivel frame allows the load to be steered. The overall wheel diameter is 100mm, the wheel overall width is 25mm and can be purchased separately (<a href="/?s=NY4415&amp;post_type=product">NY4415</a>).


Richmond Castor Swivel with Nylon 100mm Wheel (S4716)

S4716 Swivel Richmond Castor with 100mm Nylon Wheel.
Castor Wheel Diameter: 100mm
Castor Frame Type: Swivel
Castor Wheel Construction: Nylon
Bearing Type: Plain Bearing
Castor Height: 134mm
Maximum Castor Capacity: 70kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

simple

Castors

Plastic Wheels

Utility Series

Buy-online

wheels-castors-freight


This rigid frame castor (part no. R4717) is fitted with a nylon 100mm wheel. This castors max capacity is 70kg. The rigid castor uses plain bearings for wheel rotation. The rigid frame only allows linear movement unless used with swivel castors. The overall wheel diameter is 100mm, the wheel overall width is 25mm and can be purchased separately (<a href="/?s=NY4415&amp;post_type=product">NY4415</a>).

Richmond Castor Rigid with Nylon 100mm Wheel (R4717)

R4717 Rigid Richmond Castor with 100mm Nylon Wheel.
Castor Wheel Diameter: 100mm
Castor Frame Type: Rigid
Castor Wheel Construction: Nylon
Bearing Type: Plain Bearing
Castor Height: 134mm
Maximum Castor Capacity: 70kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

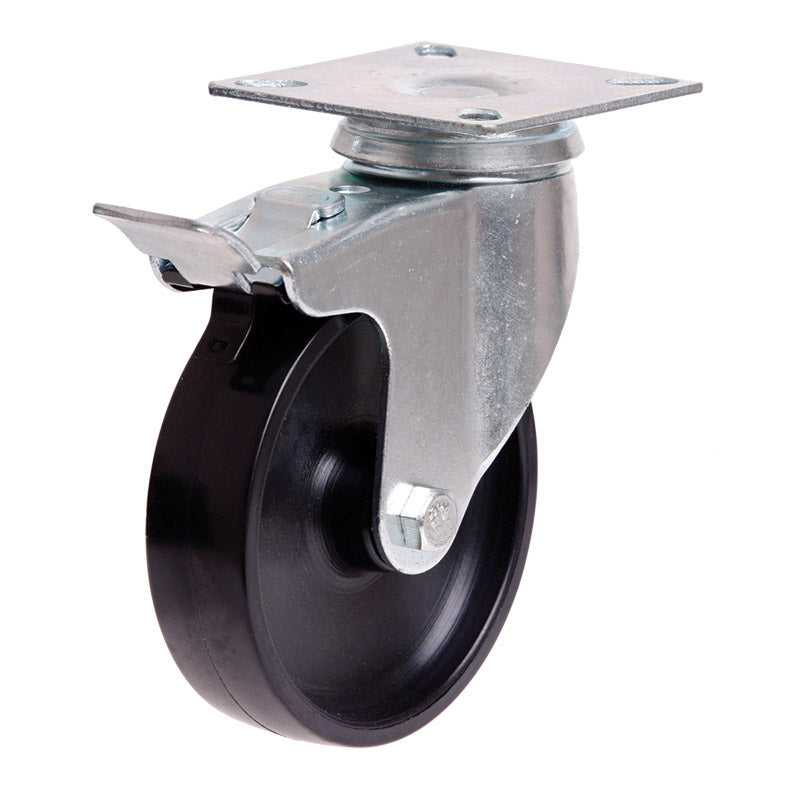

This swivel frame castor (part no. S4716B) has a nylon 100mm wheel. The maximum capacity of this castor is 70kg. The swivel castor uses plain bearings for wheel rotation. Fitted with a brake, however if you need it without a brake, search for <a href="/?s=S4716&amp;post_type=product">S4716</a>. The swivel frame of this castor allows the castor to swivel 360°. The overall wheel diameter is 100mm, the wheel overall width is 25mm and can be purchased separately (<a href="/?s=NY4415&amp;post_type=product">NY4415</a>).

Richmond Castor Swivel with Nylon 100mm Wheel and Brake (S4716B)

S4716B Swivel Richmond Castor with 100mm Nylon Wheel fitted with brake.
Castor Wheel Diameter: 100mm
Castor Frame Type: Swivel
Castor Wheel Construction: Nylon
Bearing Type: Plain Bearing
Castor Height: 134mm
Maximum Castor Capacity: 70kg
<img class="brand_in_desc" src="/wp-content/uploads/2018/03/Richmond-300.jpg" alt="Richmond Wheels and Castors Logo" />

Richmond Castor Swivel with Nylon 100mm Wheel and Brake (S4716B)
