LevelR Square Plastic Tube Insert Mild Steel Thread.
19mm Diameter
M08 Bolt Hole
250kg Capacity


Square M08 Threaded Insert | TIR19SQM08

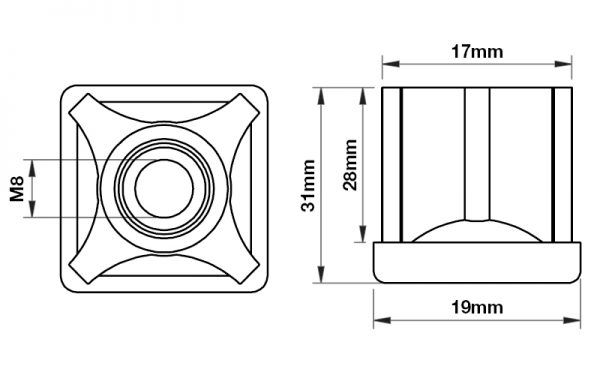

<img class="alignnone wp-image-44854" src="https://www.richmondau.com/wp-content/uploads/2016/03/TIR19SQM08-dimensions-e1526883227711.jpg" alt="" width="559" height="349" />
&nbsp;
To Suit Square Tube Size: 19mm
Shank Width: 17mm
Shank Length: 28mm
Overall Length: 31mm
Thread: M8
Load Capacity: 250kg
<div class="combined_desc_block">
<ul class="display_data">
<li>To complement the LevelR range, inserts for square tube are available to fit light wall tubes</li>
<li>The inserts are designed especially so they can be turned down to fit heavier wall pipe and tube</li>
</ul>
<img class="alignnone size-full wp-image-44853" src="https://www.richmondau.com/wp-content/uploads/2016/03/Square-Insert-Diagram-Drawing-1.jpg" alt="" width="600" height="600" />
</div>

Square M08 Threaded Insert | TIR19SQM08
