LevelR Square Threaded Tube Insert - 32mm Diameter M08 Bolt Hole 250kg Capacity


Square M08 Threaded Insert | TIR32SQM08

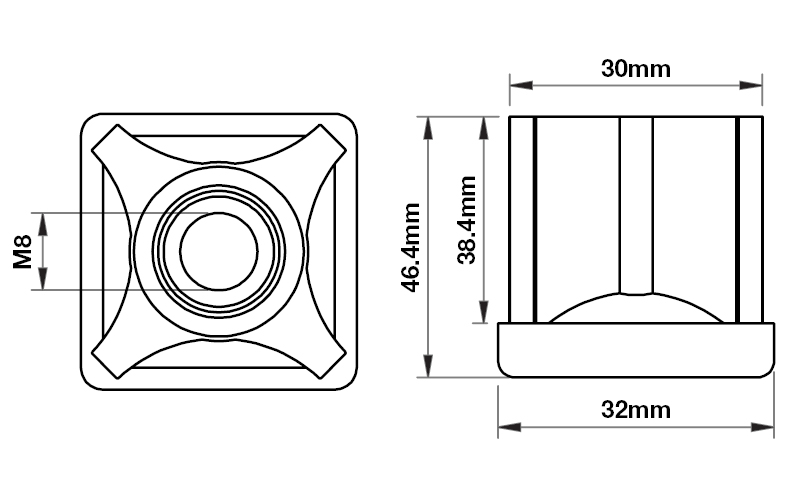

<img class="alignnone wp-image-44858" src="https://www.richmondau.com/wp-content/uploads/2016/03/TIR32SQM08-dimensions.jpg" alt="" width="602" height="376" />
&nbsp;
To Suit Square Tube Size: 32mm
Shank Width: 30mm
Shank Length: 38.4mm
Overall Length: 46.4mm
Thread: M8
Load Capacity: 350kg
<div class="combined_desc_block">
<ul class="display_data">
<li>To complement the LevelR range, inserts for square tube are available to fit light wall tubes</li>
<li>The inserts are designed especially so they can be turned down to fit heavier wall pipe and tube</li>
</ul>
<img class="alignnone size-full wp-image-44853" src="https://www.richmondau.com/wp-content/uploads/2016/03/Square-Insert-Diagram-Drawing-1.jpg" alt="" width="600" height="600" />
</div>

Square M08 Threaded Insert | TIR32SQM08
