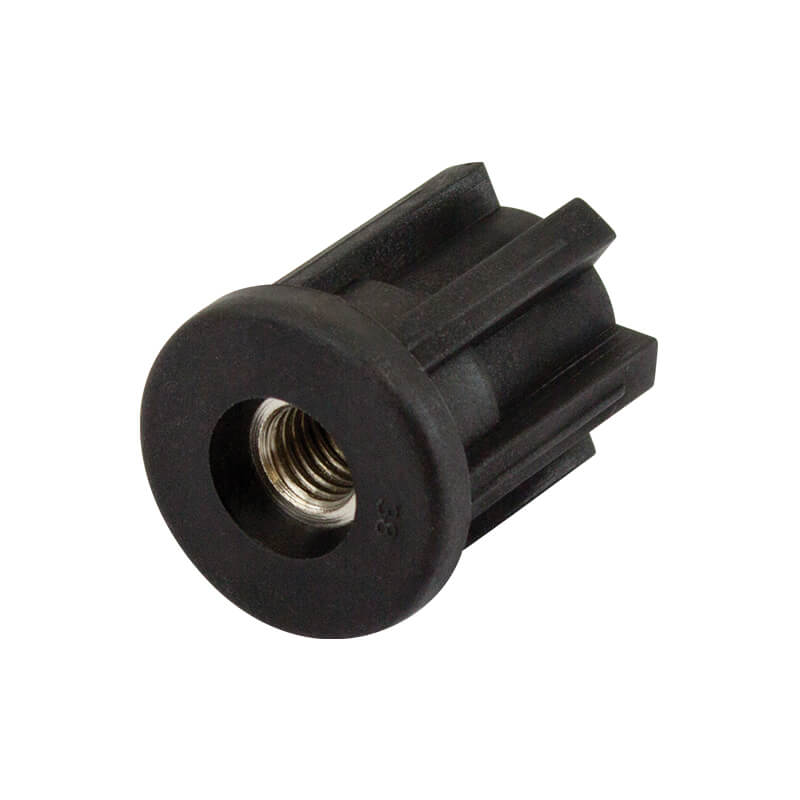

LevelR Round Threaded Tube Insert - 38mm Diameter M12 Bolt Hole 300kg Capacity


Round M12 Threaded Insert | TIR38ROM12

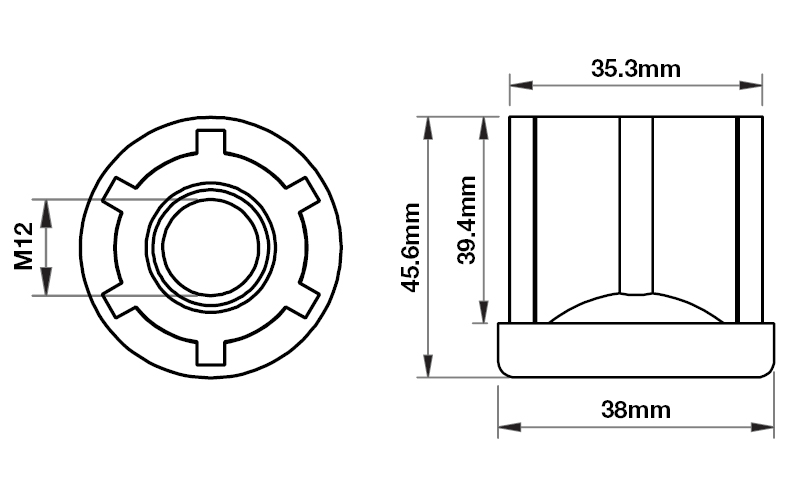

<img class="alignnone wp-image-44892" src="https://www.richmondau.com/wp-content/uploads/2016/03/TIR38R0M12-dimensions.jpg" alt="" width="600" height="375" />
To Suit Round Tube Diameter: 38mm
Shank Diameter: 35.3mm
Shank Length: 39.4mm
Overall Length: 45.6mm
Thread: M12
Load Capacity: 300kg
<div class="combined_desc_block">
<ul class="display_data">
<li>To complement the LevelR range, inserts for square tube are available to fit light wall tubes</li>
<li>The inserts are designed especially so they can be turned down to fit heavier wall pipe and tube</li>

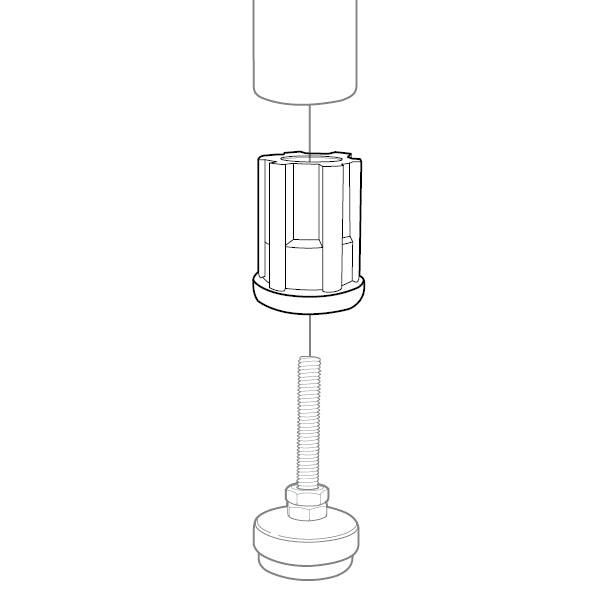

<li><img class="alignnone size-full wp-image-44882" src="https://www.richmondau.com/wp-content/uploads/2016/03/Round-Insert-Diagram-Drawing.jpg" alt="" width="600" height="600" /></li>
</ul>
&nbsp;
</div>

Round M12 Threaded Insert | TIR38ROM12
