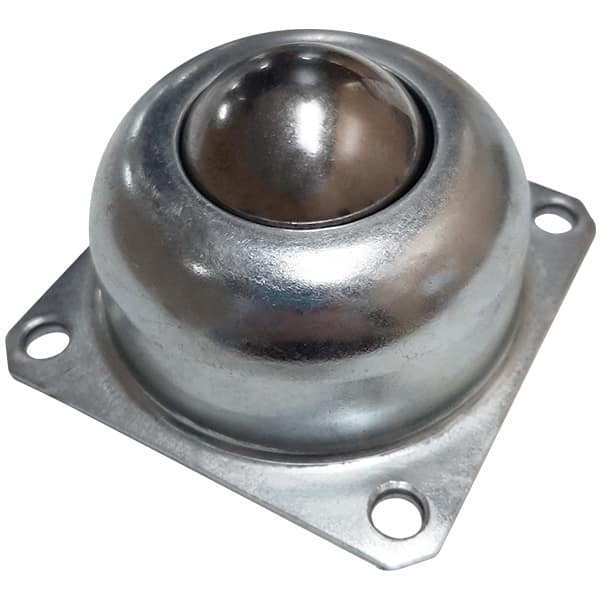

Mild Steel Square Flange Mount Ball Transfer 38.1mm Roller Diameter | BTR638MS
$16.10 inc GST ($14.64 ex.GST)

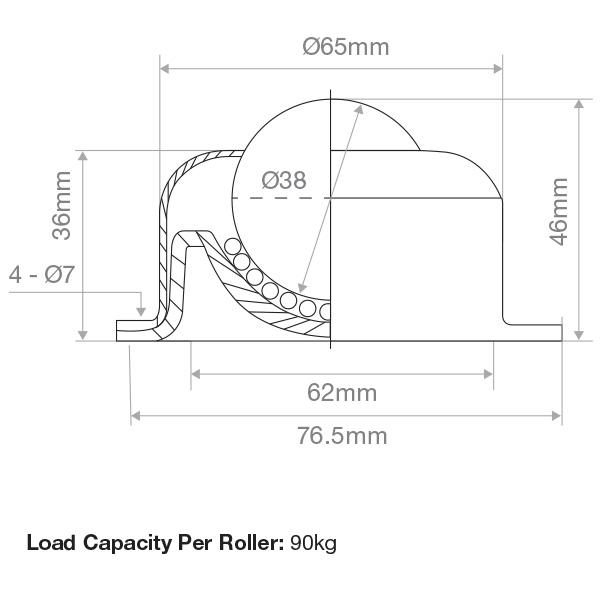

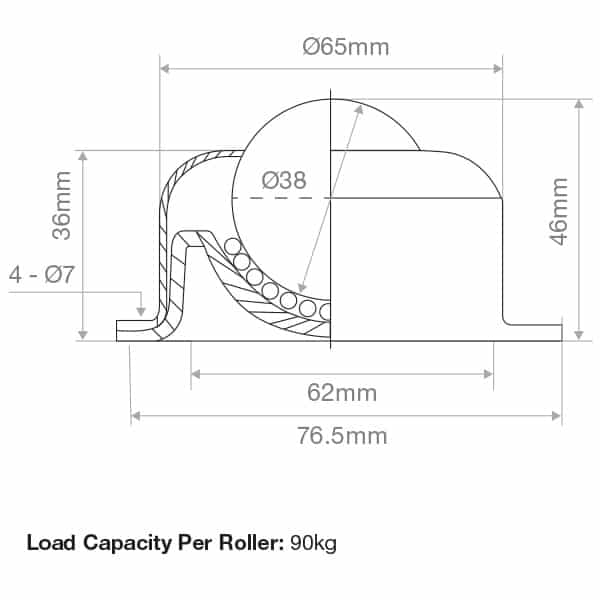

Material: Mild Steel
Ball Diameter: 1.5″ (38.1mm)
Overall Height: 45mm
Hole Centres: 62mm
Mounting Hole Diameter: 7mm
Load Capacity: 90kg
Also available in stainless steel, stainless steel part number BTR638SS
This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.
